Roll Up doors

Roll-up doors / Rolo Vrata

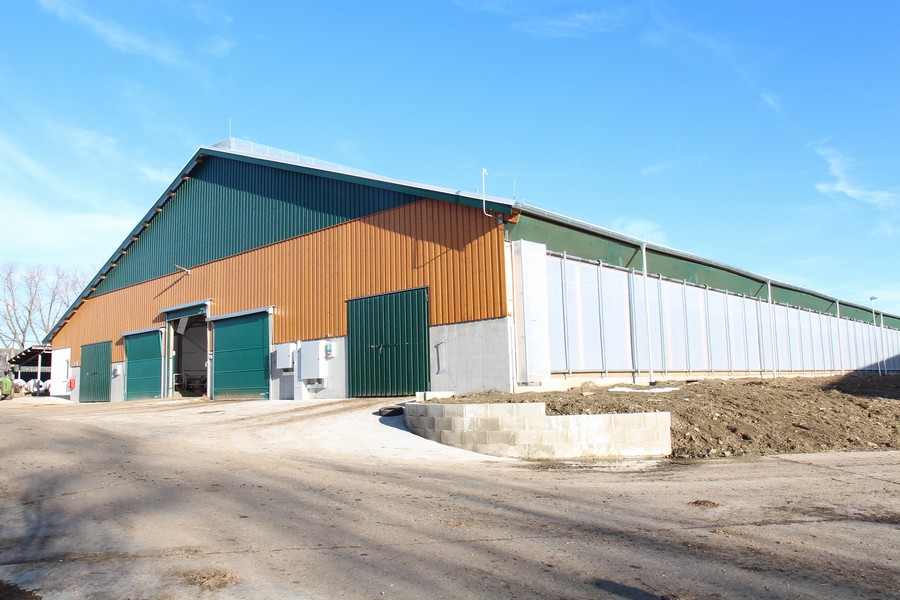

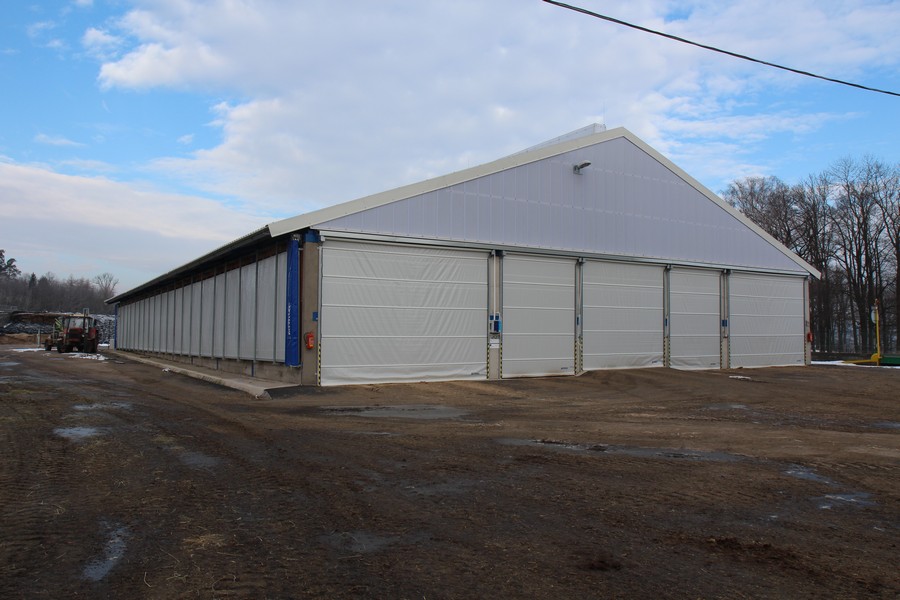

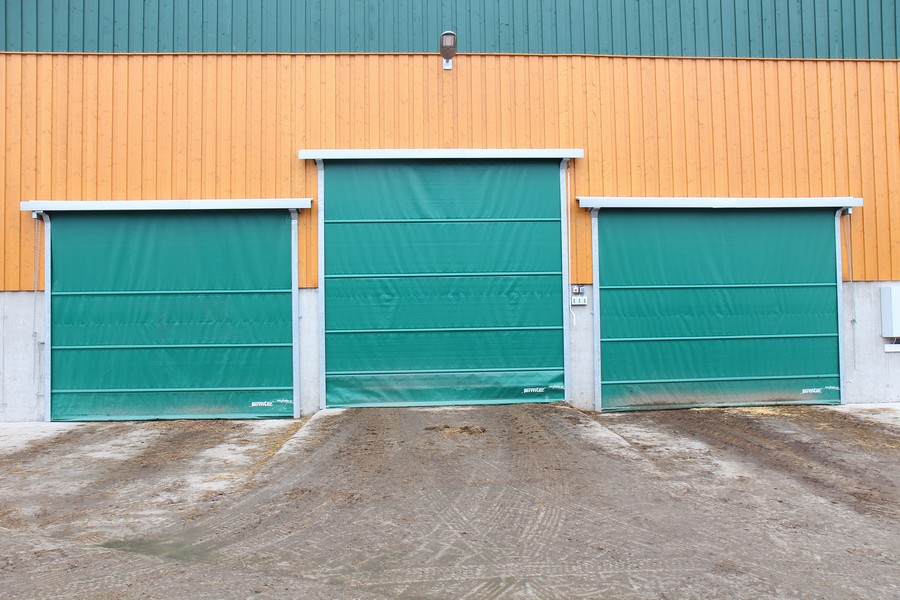

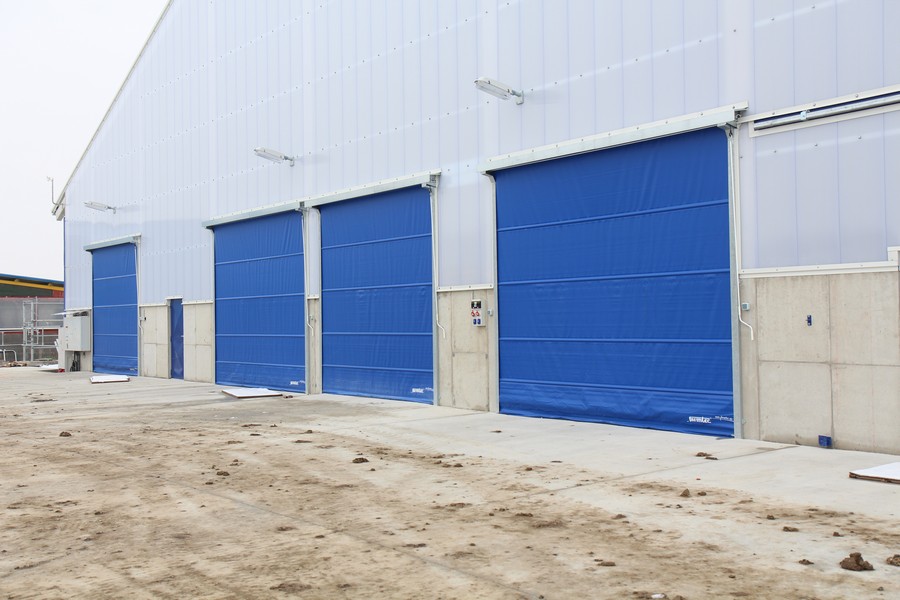

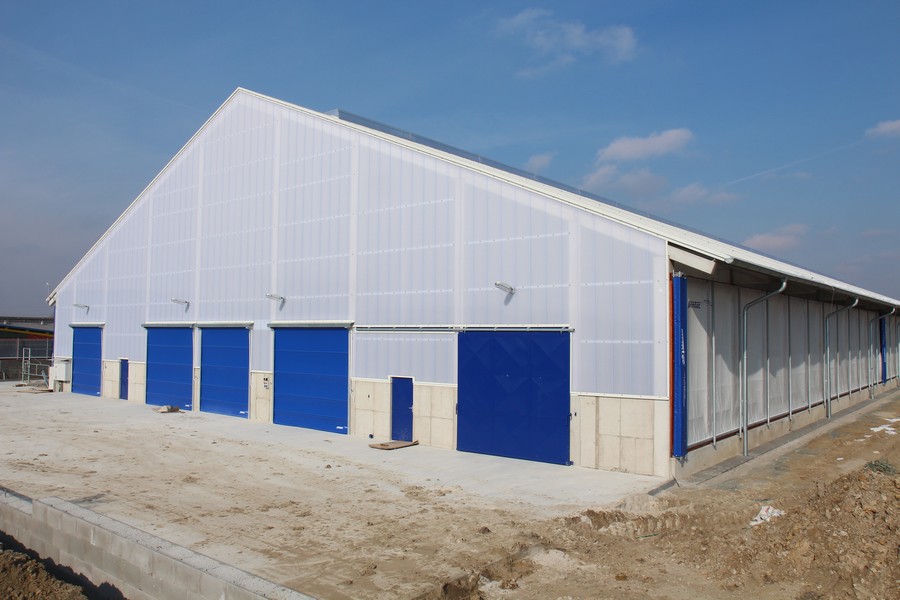

Our Roll-up doors have a simple construction, a sophisticated side guide system, easy assembly and maintenance. Compared with conventional wing doors, they are not damaged by weather conditions and do not obstruct in the stable. The maximum door dimensions are 5000 mm wide, 4000 mm high. The winding door can be supplemented with a roof that protects the door and the winding system from rain, snow and increases the service life of the door. Its assembly is simple. If the customer chooses a variant with electric drive and remote control, the driver's entry into the stable is comfortable and fast. The side guiding grooves of the gate and roof are galvanized.

Naša rolo vrata imaju jednostavan dizajn, ispitan i razrađen sistem bočnog navođenja, jednostavnu montažu i održavanje. U poređenju sa standardnim krilnim vratima, oni se ne oštećuju usled vremenskih uslova i ne ometaju prilikom radova u staji. Maksimalne dimenzije vrata su 5000 mm širina i 4000 mm visina. Ova rolo vrata se mogu dopuniti nadstrešnicom koja štiti vrata i sistem za namotavanje od kiše, snijega, a što povećava upotrebni vijek vrata. Njihova montaža je jednostavna. Ako kupac izabere varijantu sa el. pogonom i daljinskim upravljačem olakšava se vozaču traktora da uđe u staju. Vodilice za vrata i krov su pocinčane.

Supply of door fill materials: / Ponuda materijala za punjenje vrata:

  • Canvas – green, yellow, gray, white and brown colors,… 620 g/m2 – tensile strength 300 N/50 mm, temperature resistance -30°C až +70°C, tear resistance 300 N, flammability according to DIN 75200, ISO 3795 <100 mm/min.
  • Transparent canvas – 550 g/m2, tensile strength 1000 N/50 mm, temperature resistance -40°C až +70°C, tear resistance 170 N, flammability according to ISO 3795 <100 mm/min, transparent color.
  • Translucent canvas – 500 g/m2, tensile strength 1800 N/50 mm, temperature resistance -30°C až +70°C , tear resistance 350N, flammability according to ISO 3795 <100 mm/min, white translucent color.
  • Net – 265g/ m2, temperature resistance -40°C až +70°C, tensile strength 1700 N/50 mm, tear resistance 330 N, colors white or green.
  • It is possible to combine coloured and translucent canvas as well as canvas and net.
  • Platno - boja zelena, žuta, siva, bela, smeđa,… 620 g / m2 - zatezna čvrstoća 300 N/50 mm, toplotna otpornost -30°C do + 70°C, otpornost na pucanje 300 N, zapaljivost prema DIN 75200 ISO 3795 <100 mm / min.
  • Providna cerada - 550 g/m2, zatezna čvrstoća 1000 N/50 mm, toplotna otpornost -40 ° C do + 70 ° C, otpornost na pucanje 170 N, zapaljivost na ISO 3795 <100 mm / min, prozirna boja.
  • Providna cerada - 500 g/m2, zatezna čvrstoća 1800 N/50 mm, toplotna otpornost -30°C do + 70°C, otpornost na pucanje 350 N, zapaljivost na ISO 3795 <100 mm /min, bijela prozirna boja.
  • Mreža - 265g /m2, toplotna otpornost -40 ° C do + 70 ° C, zatezna čvrstoća 1700 N/50 mm, otpornost na pucanje 330 N, boja bijela / zelena.
  • Moguće je kombinovati boje i prozirno platno, kao i platno i mrežu.

Offer profiles - the side guiding grooves: / Ponuda profila - bočne vodilice:

  • Asymmetric profiles - J-shape - dimensions 90x50x50 mm
  • Symmetric profiles – U-shape - dimensions 90x80x90 mm. The profile is fitted with a brush on the inside to better protect the canvas against contact with the steel profile. It also dampens noise in windy weather.
  • Asimetrični profili u obliku slova J - veličina 90x50x50 mm
  • Simetrični profili u obliku slova U - veličina 90x80x90 mm. Sa unutrašnje strane, ovaj profil je opremljen četkama koje ne samo da bolje štite ceradu od kontakta sa čeličnim profilom, već i smanjuju buku kad je vjetrovito vrijeme.

Offer drives for doors: / Ponuda pogona vrata:

  • Manual drive - simple and cost-effective manual control on the chain, quick winding or closing of the door.
  • Electric drive - two versions are possible:

a) Wireless door operator on the wall - an economical alternative (the controller is firmly mounted on the wall of the stable).

b) Combination of electric control and remote control (the electric controller is connected to the door motor by a cable and firmly mounted on the wall of the stable).

  • Both versions of the electric drive are always a portable hand lever that can be closed or opened in the event of a power failure or drive failure.



  • Ručni pogon - jednostavna i ekonomična ručna kontrola preko lanca, brzo namotavanje ili uvlačenje vrata.
  • Električni pogon - moguće su dvije verzije:

a) Bežični upravljač vrata na zidu - takozvana štedna varijanta (upravljač je čvrsto fiksiran na zidu štale

b) kombinacija električnog upravljanja i daljinskog upravljača (upravljač je priključen kablom na motor vrata i pričvršćen na zid).

  • U obe verzije električnog pogona uvek postoji prenosiva ručna ručica koja se može uvući ili ukloniti u slučaju nestanka struje ili kvara pogona.
